Time-Limited trial versions (hex & exe) code. Ask for prices for no-limit versions!

PCPWM1: Setting the operating percentage of the PWM output(s) and the selection of the operating frequency and from the PC
The offer code shows easy way to control of pwm from PC screen.
For Arduino boards: NANO - UNO - MEGA

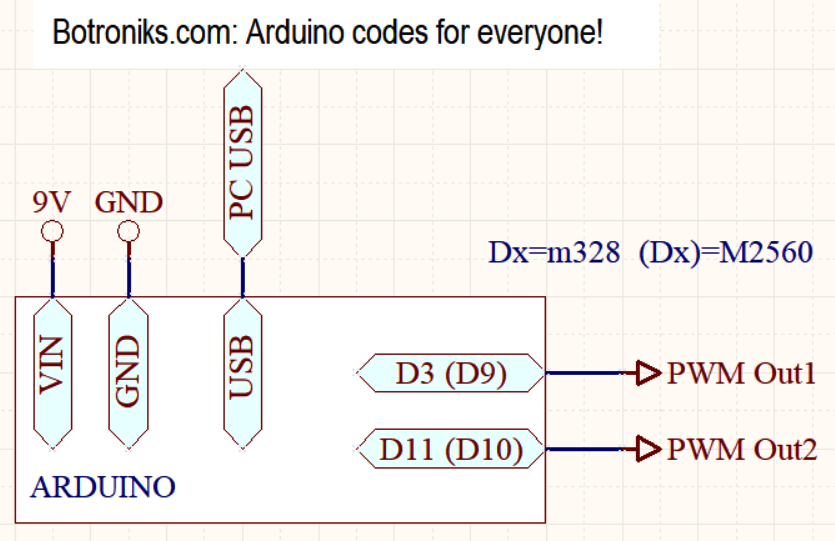

Arduino pins are used: see connections (for Mega: D9/D10)
Electrical and practical notes: (Recommendation:Use the following accessories for testing as well as for later use: Lnk1 - Lnk2 )
It can be powered only from PC USB but it is recommended to use an external voltage source 9V/1A (on dc plug or on VIN pin).
On outputs can connect some other type of 5V Loads up to 20 mA (for each output) like LED, PWM drivers (Link1 - Link2 -
When finishing uploading code, be sure to do a Default Reset (see below)
User guide and explanations:
Select the PWM frequency depending on the load(s) used.
PWM Out1: According to user settings - PWM Out2: inverted of Out1 (e.g. Out1=100% Out2=0%)
The set values remain stored (EEPROM) even after a power failure!
The code in the board does independently from PC according to the last settings values!
Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free net tool for example XLoader)
1. uc ATmega328-16MHz (MINI,NANO,UNO..): PCPWM1try-m328 - Time-Limited trial version (12 hours) then need restart!
2. uc AtMega2560 (Mega(ATMEGA2560)......): PCPWM1try-M2560 - Time-Limited trial version (12 hours) then need restart!

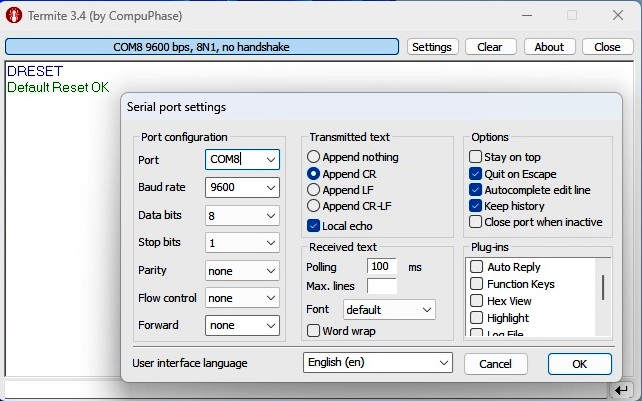

Description of HexCode commands ( You can test the uploaded code using some free serial communication software such as Termite (select: Append CR)):
AT command (ASCII characters + ENTER) - Baud 9600,8 Data bits, None Parity,1 Stop Bit
AT - attention command (returns OK)
I? - software code info (return ucAppName)
PV01? = Return PV01= set percentage (0-100)
SV01? - Return value of SV01 = working percentage
SV02? - Return value of SV02 = selected pwm frequency (see Legend)
Set-Preset commands: Some or all commands use internal uC EEPROM for memorization when power loss!
SV01=X - X=Set (working) pwm percentage (0-100% 0=0V 100%=5V)
SV02=X - X=pwm frequency (selection 1-7)
--- Legend: 1=31372.55Hz 2=3921.16Hz 3=980.39Hz 4=490.20(default) 5=245.10Hz 6=122.55Hz 7=30.64Hz

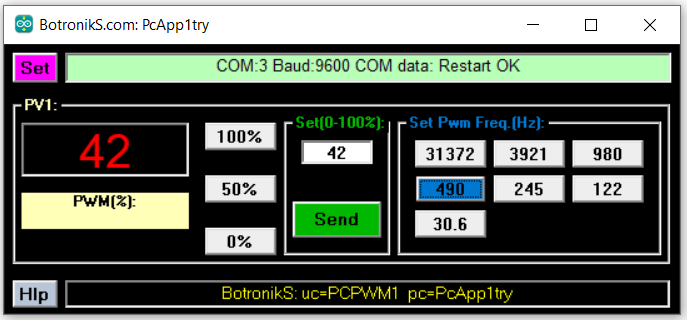

PC Application(s) for offered Hex code (for WINDOWS):
In order for the offered PC applications to work, it is necessary to download and install (one time only) VB6RunTimePlus2.2

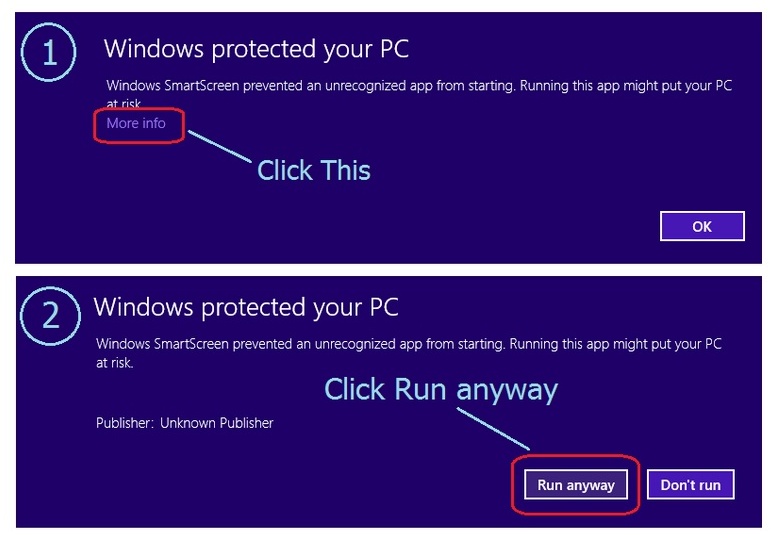

Download the PC application, unpack, and start (allow windows to start applications - see HOW) enter the COM port number where the Arduino is connected and test it...

Download: PcApp1try - Time-Limited trial version (12 hours) then need restart!
