Botroniks Arduino ready-made hex code project - LDP0020: Measurement temperature and relative humidity (sensor DHT22) and show at one LED display

BotronikS - Final code for all types of Arduino and PC users: -- HOME -- CONTACT
Arduino required accessories:
TM1637 LED display - 1 - 2 - 3
sensor DHT22: 1 - 2 - 3
or sensor AM2302: 1 - 2 - 3
or sensor AM2305: 1 - 2 - 3
or sensor AM2315C: 1 - 2 - 3

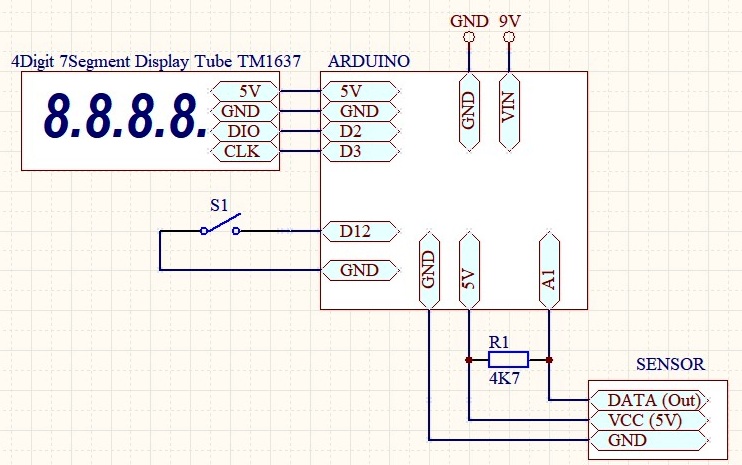

connections (click to enlarge)
additional accessories

TEHUM1: Measurement temperature and relative humidity (sensor DHT22/AM2305...) and show at one LED display - FREE!
The offered code enables: Temperature and relative humidity value shown on one display
Required accessories: - see above
For Arduino boards: NANO or UNO or MEGA
Arduino pins are used:
uc ATmega328p (NANO, UNO, ...): (see connections)
uc AtMega2560 (MEGA,.............): (see connections)

Electrical and practical notes:
Uses 9V/1A external power supply (VIN/GND) on DC plug (or external 5V/1A on 5V/GND pin).
Display of the both measured value is in the form of one decimal digit.
Use specified type of 7 segments display with decimal points only (not clock dots).
S1 switch selector for temperature display in Celsius or Fahrenheit
P1 Display brightness selection potentiometer (0-7)

Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free net tool for example XLoader)
1. uc ATmega328-16MHz-5V (NANO,UNO...) - Code-m328
2. uc AtMega2560 (Mega(ATMEGA2560).....) - Code-m2560


PC Application(s): no

Proj Pic:
