RFCID 4out1dht: RF (radio freq.) ID+Status control of up to 4 outputs + Sensor DHT22 from PC by Text commands...

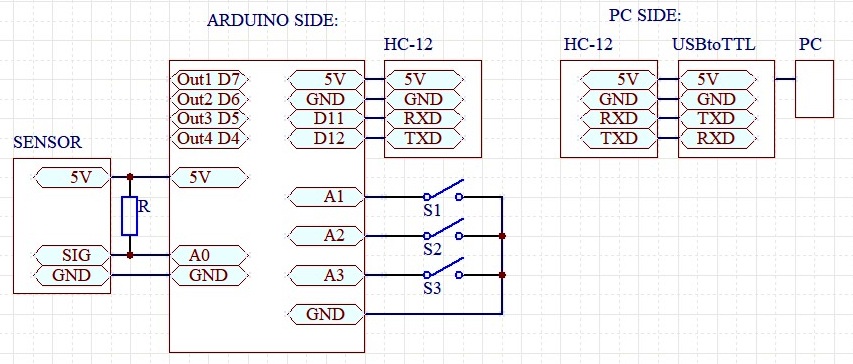

Shm:

Xloader:

Termite-PC side:

accessories:
TB shield: 1 - 2 - 3
Reley shield: 1 - 2 - 3
HC-12 : 1 - 2 - 3
HC-12 data
USBtoTTL: 1 - 2 - 3
Sensor: 1 - 2 - 3


Download the HEX codes below, unpack, and upload to the proper Arduino board (Use a free net tool for example XLoader)
1. ATmega328-16MHz (NANO, UNO...........): HexCode-m328
2. AtMega2560 (Mega(MEGA2560)..........): HexCode-m2560
HexCode is Free! Ask for the price of the ArduinoIDE source code.
Based on the offered Text commands, you can develop your PC, PLC ... communication code, and applications...

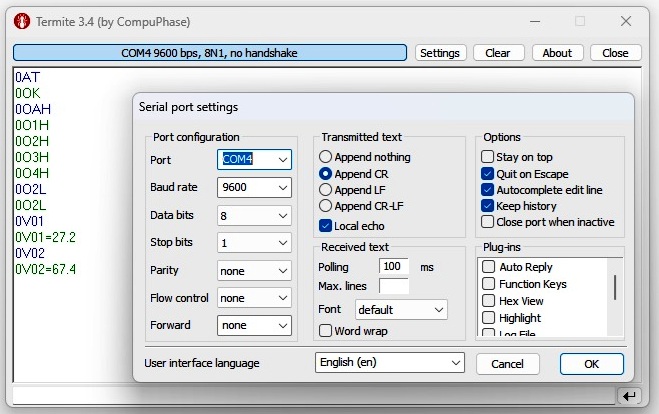

Available TEXT commands: Test uploaded code using some free serial software such as Termite
Note: Arduino=Baud 9600 HC-12: Default settings
Added ID (identifier) defined by S1-S3 jumper state (0=open 1=close)
ID=0 (S1=0 S2=0 S3=0) ID=1 (S1=1 S2=0 S3=0) ID=2 (S1=0 S2=1 S3=0) ID=3 (S1=0 S2=0 S3=1)
TEXT commands:
ID+AT - returns OK (eg. for ID=0: 0AT)
ID+OA - returns the status of all outputs
ID+Ox - returns status of single output x (x=1-4 H=5V L=0V)
ID+OxH - set single OUTx at HI(5V) level - eg. for ID=1: 1O1H
ID+OxL - set single OUTx at LO(0V) level - eg. for ID=2: 2O2L
ID+OAH - set all outputs at a high (5V) level
ID+OAL - set all outputs at a low (0V) level
ID+V01 - returns value of sensor temperature (C)
ID+V02 - returns value of sensor humidity (%RH) (eg. for ID=3: 3V02)
Test with BScada: BScada4id2val

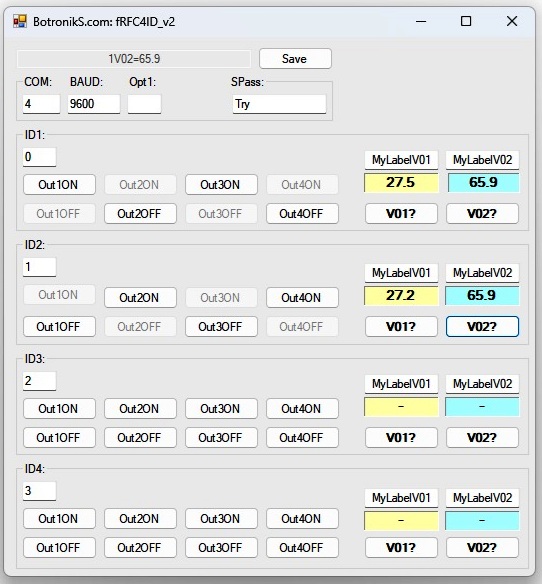

vb22PcApp1: Download and unpack. Always use app in folder.
Try version limited to 2h of operation. Then must be restarted.
For final version you need software pasword (vb22SPass1). Contact us for price.
