USS1: Ultrasonic Sensor HC-SR04 Measuring Distance Sensor LED Display Module and PcApp,,, |
|||||

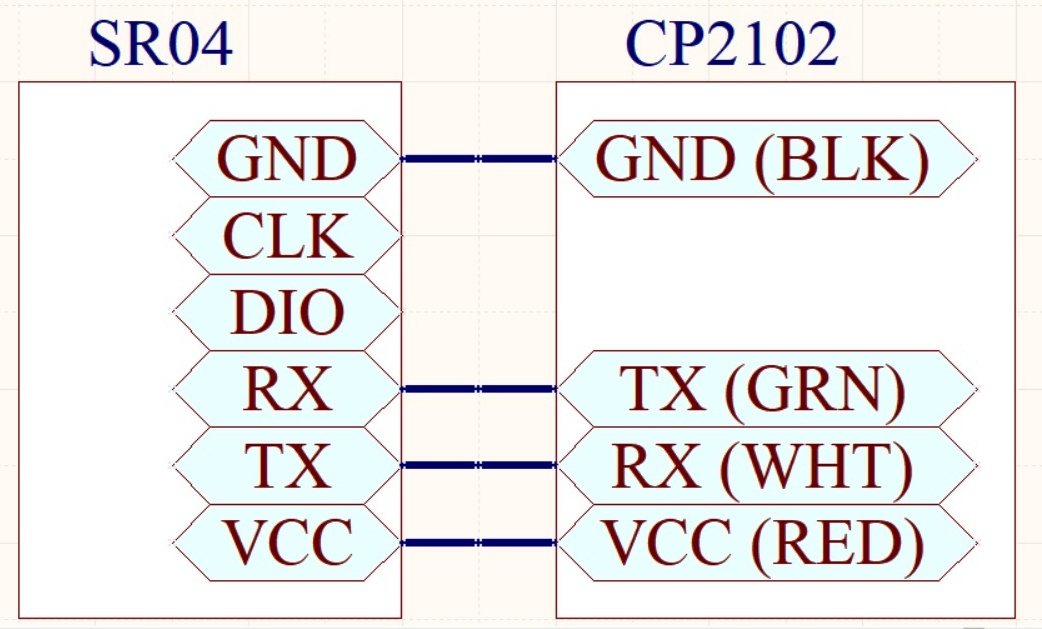

connections... |

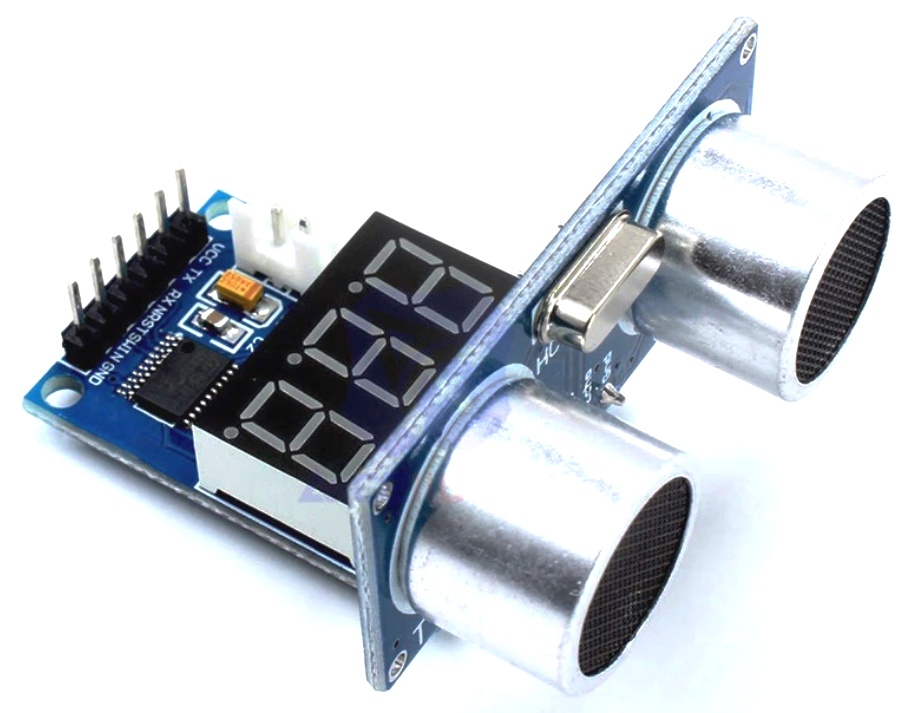

sensor + LED disply |

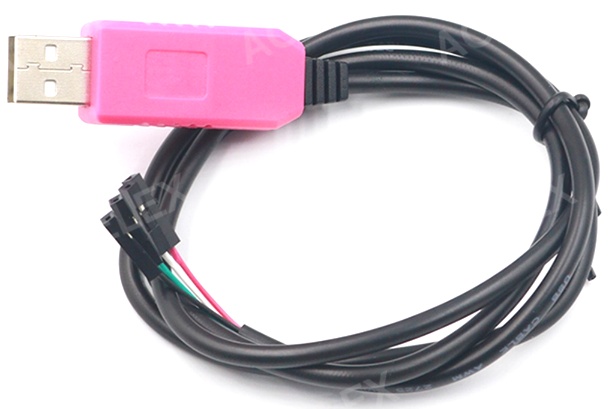

USB to UART TTL cable... |
Used accessories: |
Termite... |
PcApp... |
| SR04 sensor... | |||||
| CP2102 USB to UART TTL... | |||||
| All offered codes here are FREE to use! Source codes and Your special requests are available via email! | |||||
| Not necessary any code for Arduino | |||||
| Based on the offered AT commands, you can develop your own PC, PLC ... communication code and applications... | |||||

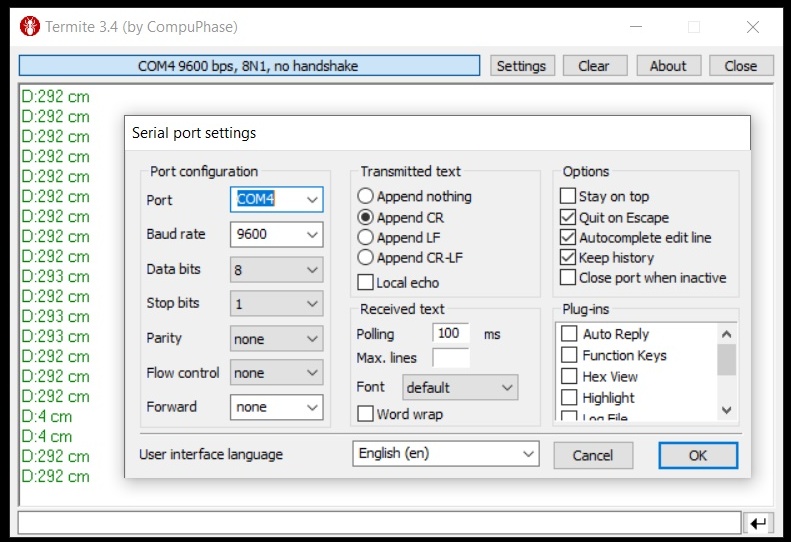

Avaliable AT commands (Baud 9600,8 Data bits, None Parity,1 Stop Bit): You can test the uploaded code using some free serial software such as Termite (select: Append CR): |
|||||
No AT commands - Everything is clear when it connects to a PC USB according to the connections scheme |
|||||
| PC Application(s) (for WINDOWS): | |||||
| In order for the offered PC applications to work, it is necessary to download and install (one time only) VB6RunTimePlus2.2 | |||||

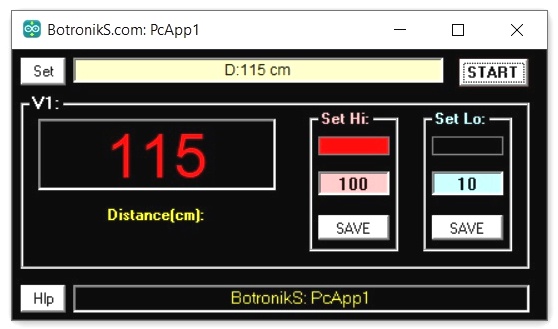

| Download the PC application, unpack, and start (allow download and windows to start applications) enter the COM port number where the Arduino is connected and test it... | |||||
| Download PcApp: PcApp1 | |||||

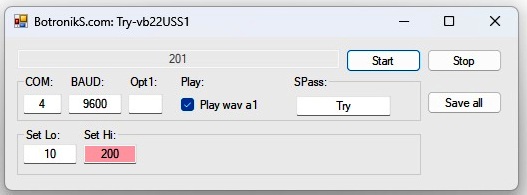

| Setting the upper and lower alarm limits and activating sound wav files when the alarm is active... | |||||
| The wav files (a1, a2) must be in the same folder as exe. You can make and add your own vaw files but must be the same names. | |||||
