PCC-4out: Up to 4 outputs controlled by TEXT commands (from PC, PLC...)
| BotronikS - Final code for all types of Arduino and PC users: -- HOME -- email: botronik@gmail.com |
| What you need to install or have installed before on your PC: see HERE |
PCC-4out: Up to 4 outputs controlled by TEXT commands (from PC, PLC...) |
|||

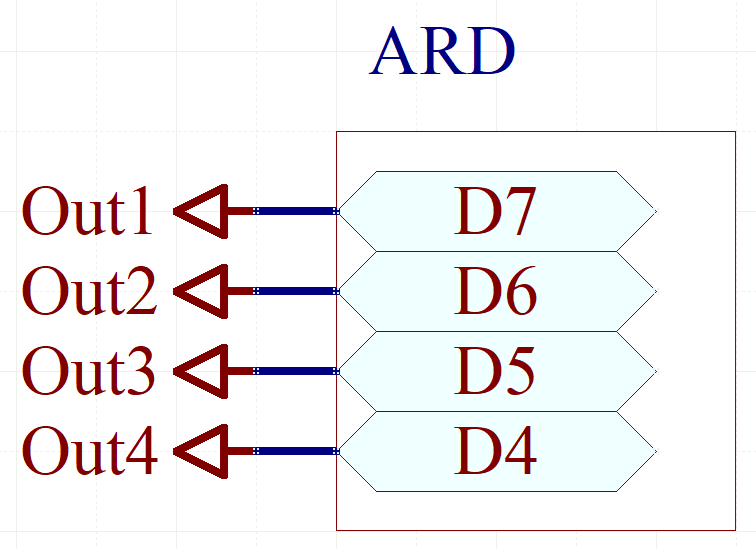

| Note: Out1-Out4= max30mA for each one | |||
| Download the HEX codes below, unpack, and upload to the proper Arduino board (Use a free net tool for example XLoader) | |||
| 1. ATmega328-16MHz (MINI,NANO,UNO...): HexCode-m328 | |||
| 2. AtMega2560 (Mega(ATMEGA2560)......): HexCode-m2560 | |||
| Based on the offered TEXT commands, you can develop your own PC, PLC ... communication code, and applications... | |||

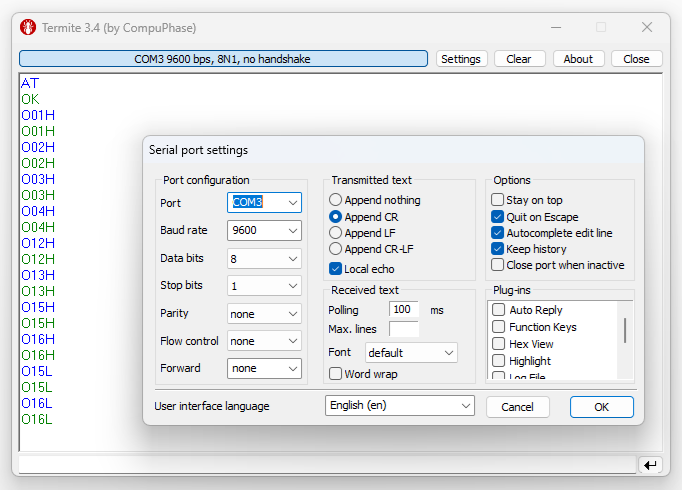

| Available ASCII TEXT commands (Baud=9600): Test uploaded code using some free serial software such as Termite.TextCommamd format: TextCommand + ENTER |
| AT - attention command (return OK) - example: AT |
| OxH - set OUTx (x=01-04) at Hi(5V) level - example: O01H |
| OxL - set OUTx (x=01-04) at Lo(0V) level - example: O04L |
| Try and Test with BScada-SScada: |
| BScada: soon |
